LVL(Laminated Veneer Lumber) ,LVB,Poplar LVL,Pine LVL, Constructions LVL,Beam LVL,Scaffold LVL 3900x225x38mm

• LVL Pictures
• LVL Description
• Features of Consmos LVL
• What is LVL
• Advantages of LVL over than other wood-based materials

---

 »Detailed Products Description

---

LVL(Laminated Veneer Lumber),LVB Description:

Grade/Kind:
1) packing grade LVL, for pallet panel, crate panel, packing materials;
2)furniture grade LVL, for bed slat, bed siderail etc.
3)LVB for windows,doors frame panel and scantling.

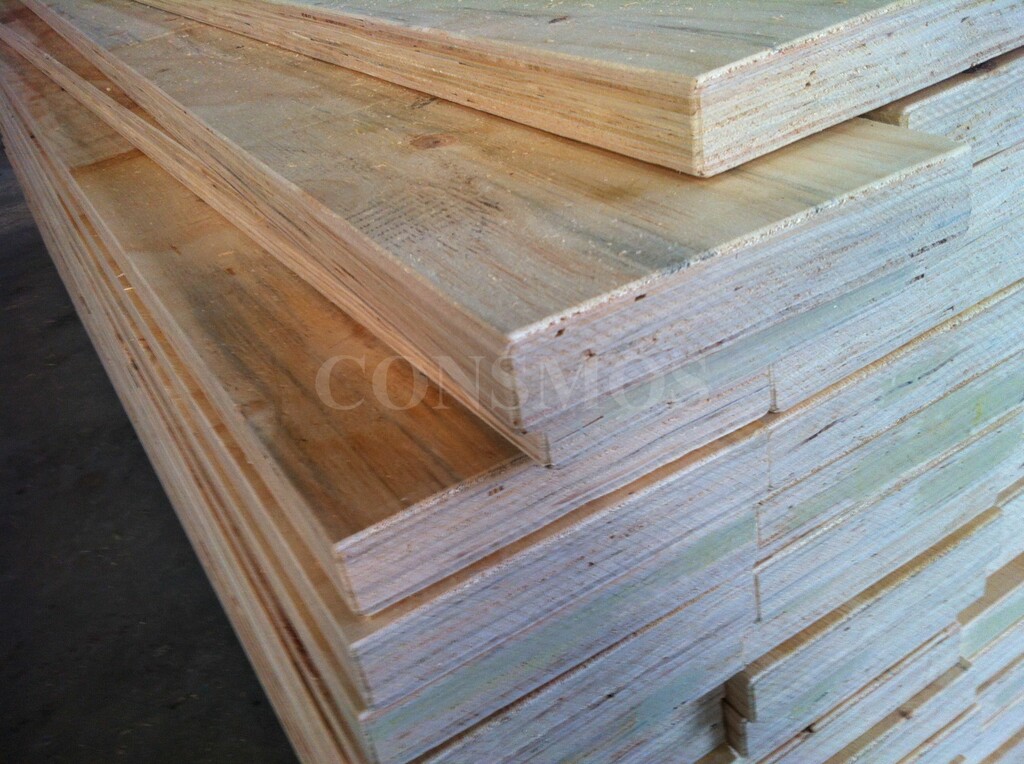

4)Scaffold board for construction.

Materials: Poplar/Pine/Hardwood
Gule :WBP/MR
Thickness:10 - 100mm
Size: max size 1220*8000mm,common size such as 39×230×4000MM for scaffold board in Mideast,26×40×2700MM for Japan ,40/30x50x4000/6000MM for plank keel,20.96x42.88x2005mm for door frame panel ,etc
Application: construction, scaffold board/plank ,door frame,window frame,furniture structural panel,and packaging.
Loading:Appr. 40+m3/40GP(1200pcs for 38.1*225*3900mm or 38.1*235*3900mm)

Packing: covered by plastic bag, fastened by steel belts with pallets, strong export packing.
Payment term: 40% in advance, 60% be paid within 5 days after sending copy of BL.
Inspection: the boards will be inspected piece by piece , each qualified board will be put a sticker in the corner.
Shipping date: usually within 15-20 days after receipt of prepayment .
Shipping marks: standard CONSMOS shipping marks for export, as below cited option:

Features of Consmos LVL/LVB:
High strength-to-weight ratio - more than 40 stronger than solid sawn products
High design values for bending, stiffness and shear strength
Resists shrinking, warping, splitting and checking
No defects to cut out and less waste on the job
Ordinary nail assembly - installs as easily as ordinary lumber

we are flexible to make the different level quality products according to your requirement...

Please contact our sales team for more detailed information regarding Chinese LVL/LVB.



---

INFORMATION FOR REFERENCE:
LVL --Laminated Veneer Lumber

Laminated veneer lumber (LVL) is a structural product manufactured from thin peeled veneers of wood glued with a durable adhesive with the grain running parallel to the main axis of the member. Panels of LVL are cut into structural members which have high strength and stiffness.

LVL is suited to structural applications such as beams, rafters and columns in a wide range of buildings including houses, commercial, industrial and rural structures. Some special LVL has a small number of veneers laid perpendicularly (cross banded).

LVL has a number of advantages over other wood-based materials:

Small logs can be made into large dimension LVL products.
Long lengths of LVL are available; up to 12 m ex stock from merchants (or 18 m by arrangement).
The wood resource can be optimised by grading and selecting veneer for different parts of an LVL cross section and making a range of products with different properties.
Structural properties of LVL are very uniform because the randomised layers of thin veneers are pre-graded for stiffness (coefficient of variation for modulus of elasticity less than 5%).
LVL members have high strength because of the low variability and randomised wood properties in thin layers.
LVL can be cut and machined with normal woodworking tools.
LVL is often used to complement the use of sawn timber in domestic construction. In commercial or industrial structures it is often used as a wood-based alternative to structural steel or reinforced concrete. Generally LVL becomes attractive when sawn timber is not strong enough to do the job, or long lengths are needed.
