Detailed Products Description:

Consmos Carpet tack strip Definition: Carpet Tack Strip be made of high quality poplar plywood,suitable for tensing the carpet to make sure carpet good performance.
Consmos Carpet tack strip Feature: one strip include 52 small nail and 9 manganese steel nails and 2 rows nails ; or one strip include 86 small nails and 9 manganese steel nails and 3 rows nails.

Consmos Carpet tack strip Description:
1.Length :1220MM(4 feet),1250MM(5 feet)
2.Width:20MM,22MM,25mm(1"),31MM
3.Thickness:5.5MM--7.0MM
4.Plywood:high quality 5-ply full Poplar plywood or birch plywood
5.Glue of plywood:E0/E1
6.52pins and 9 nails in one strip
7.anti-rust nails:nails for wood/concrete floor
8. Packing: standard export packing 100PCS /carton; 9. Printing: we can print the strips and the carton as your requirements.
10.Certificate:CARB P2

---

Consmos Tack strip (US) (also known as gripper rod (UK), carpet gripper, Smoothedge (Can), tackless strip, and gripper edge) is a thin piece of wood, studded with numbers of sharp nails or tacks used in the installation of carpet. They are nailed, tack side up, to the perimeter of the area being carpeted. After the underlay is installed , the carpet is cut to fit, stretched over the area and firmly anchored to the edges of floor via the tack strips. The Consmos carpet tack strip has two functions: first, the tacks grip the carpet and permanently hold it in place and second, the carpet edge is jammed into the gap between the tack strip and the wall which gives it a finished look with little effort. This method allows a high quality, long lasting installation to be completed quickly and easily.

Regular
The most economical type of carpet tack strips available. Plywood is approximately 7/8 inch wide. Use during routine residential and commercial installations.

Extra Wide
The most widely used type of carpet tack strips. Plywood is one full inch wide. Use during residential and commercial installation when extra holding power is required.

Commercial
Wider plywood and three rows of pins provide strong holding power during heavy stretching. Use on large installations when maximum holding power is required.

With Consmos,All types nails available for different sub-floor.
Regular 3/4" ring shank wood nail, Heavy Duty 1" ring shank wood nail, Regular 11/16" x 12GA concrete nail, Heavy Duty 5/8" x 10GA concrete nail, 11/16" x 12GA dual purpose ring shank concrete nail, 1-1/4" spiral elasticel nail, Number of Nails as 9 nails, Number of Pins as 52 pins or 86 pins

Consmos Carpet tack strip Nail Series:

Series #	Pre-nailed
CM-01	Regular 3/4" ring shank wood nail
CM-02	Heavy Duty 1" ring shank wood nail
CM-03	Regular 11/16" x 12GA concrete nail
CM-04	Heavy Duty 5/8" x 10GA concrete nail
CM-05	11/16" x 12GA dual purpose ring shank concrete nail
CM-06	1-1/4" spiral elastic nail



Standard size of Consmos carpet tack strip:
4' x 1/4" x 7/8";
4' x 1/4" x 1";
4' x 1/4" x 1-1/4"
Number of Nails as 9 nails, Number of Pins as 52 pins or 86 pins;
Packaging quantity as 100pcs per carton

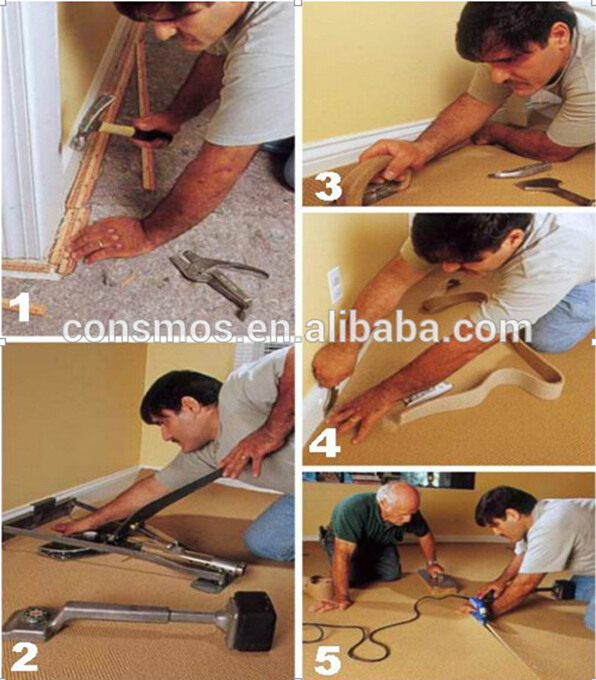

7)Install:
Simple assembly !
The Consmos carpet tack strip is easy to be installed in a few minutes, with the necessary tools as below showed:

Size and Packing Way:

Item No.	Size (LxTxW)		Packaging	Weight	Loading Quantity
	Inch	mm		Kgs/Box	CNTS/40’HQ	CNTS/20’FT
#01	4' x 1/4" x 7/8"	1220*6.3*22	100 pcs/ctn	9.80	1350-2100	620-880
#02	4' x 1/4" x 1"	1220*6.3*25	100 pcs/ctn	10-11	1150-1900	550-850
#03	4' x 1/4" x 1-1/4"	1220*6.3*33	70 pcs/ctn	10.50	1800/1980	810/850
#04	4' x 1/4" x 1-3/4"	1220*6.3*44	50 pcs/ctn	9.80	1880/2100	840/880
Attn	Tied by strength ropes and packed in hard paper box

Please contact our sales team for more further information(carpet tack strip,Consmos Tack strip (US),gripper rod (UK), carpet gripper, Smoothedge (Can), tackless strip,gripper edge also available customerized),thank you.
